$ 274.34
$ 192.04

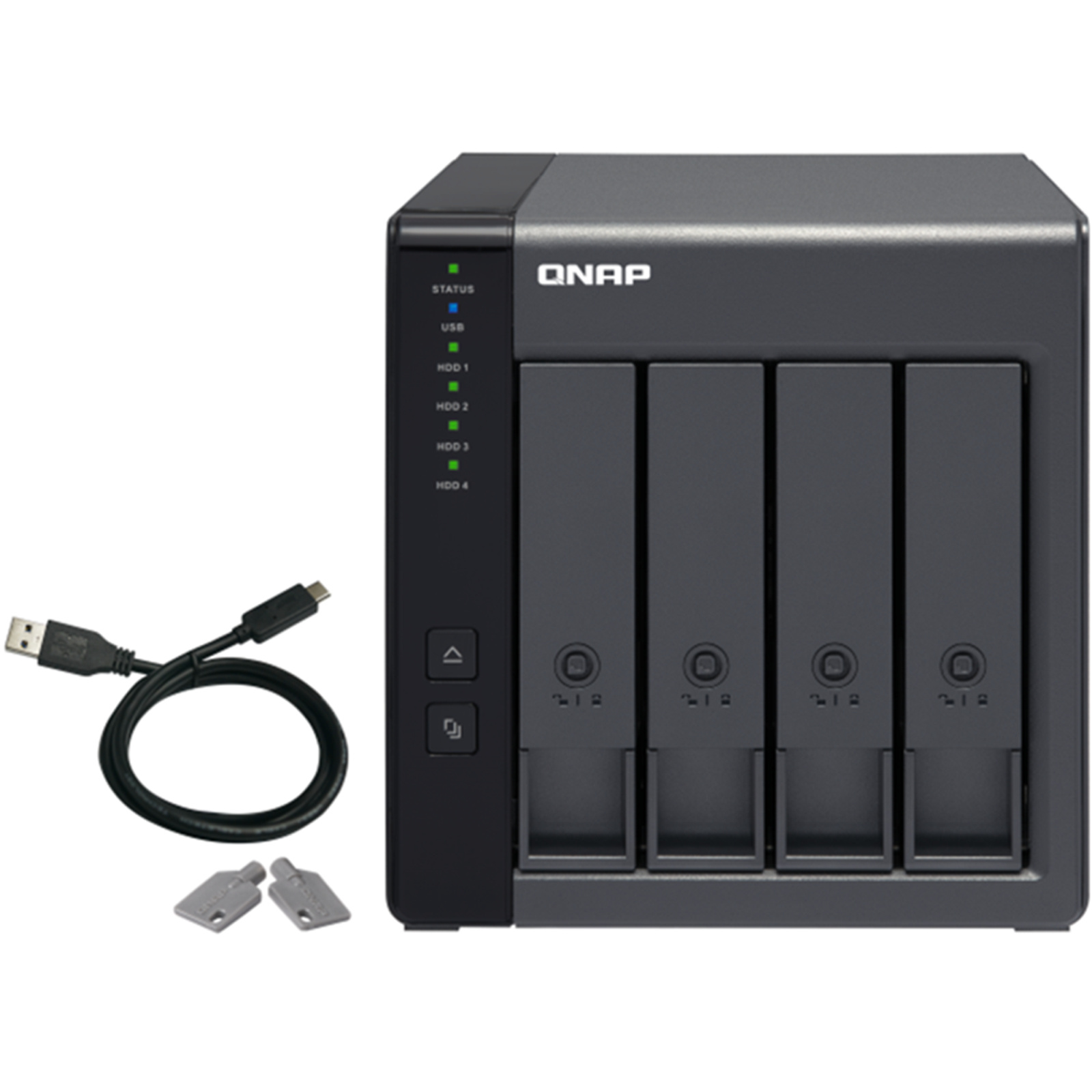

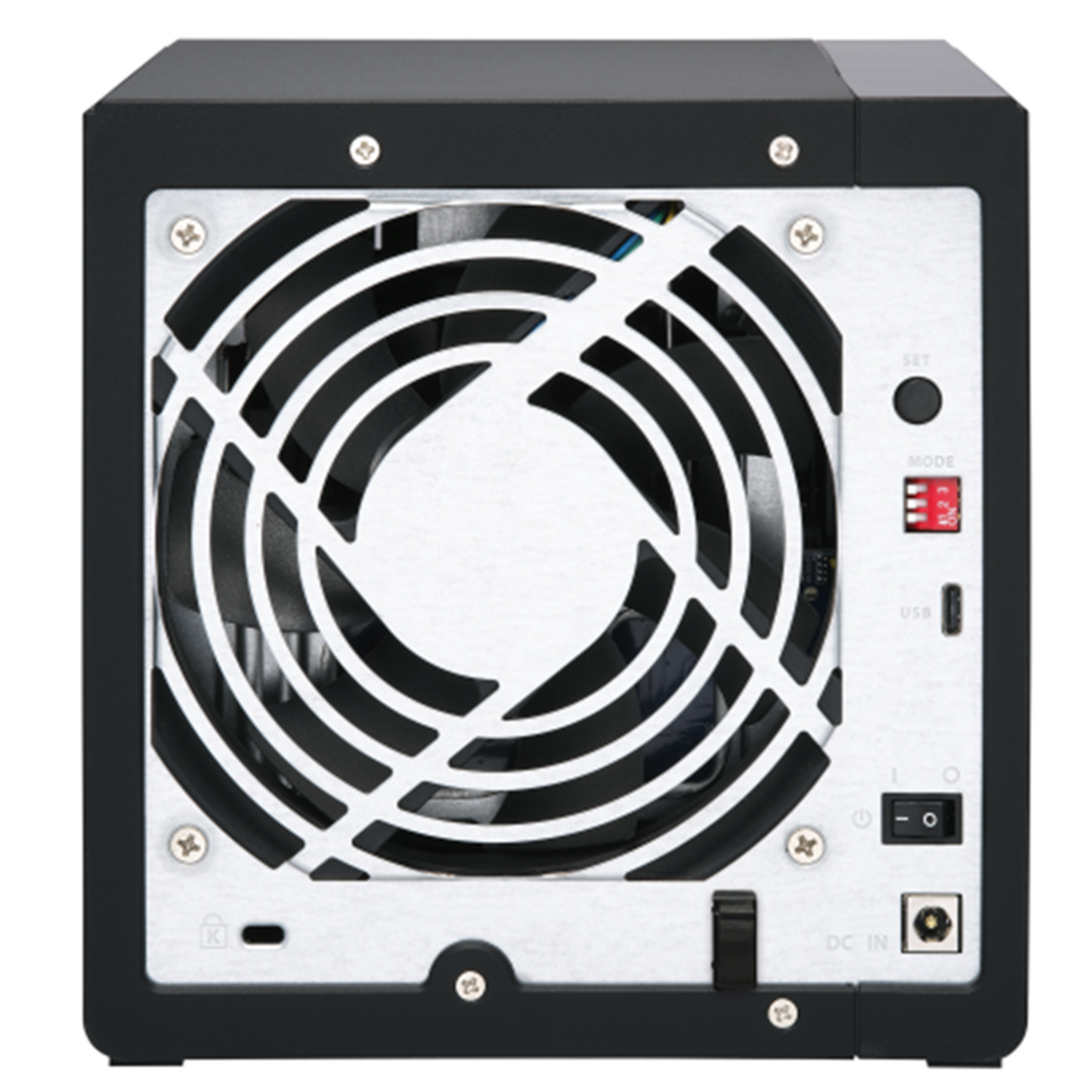

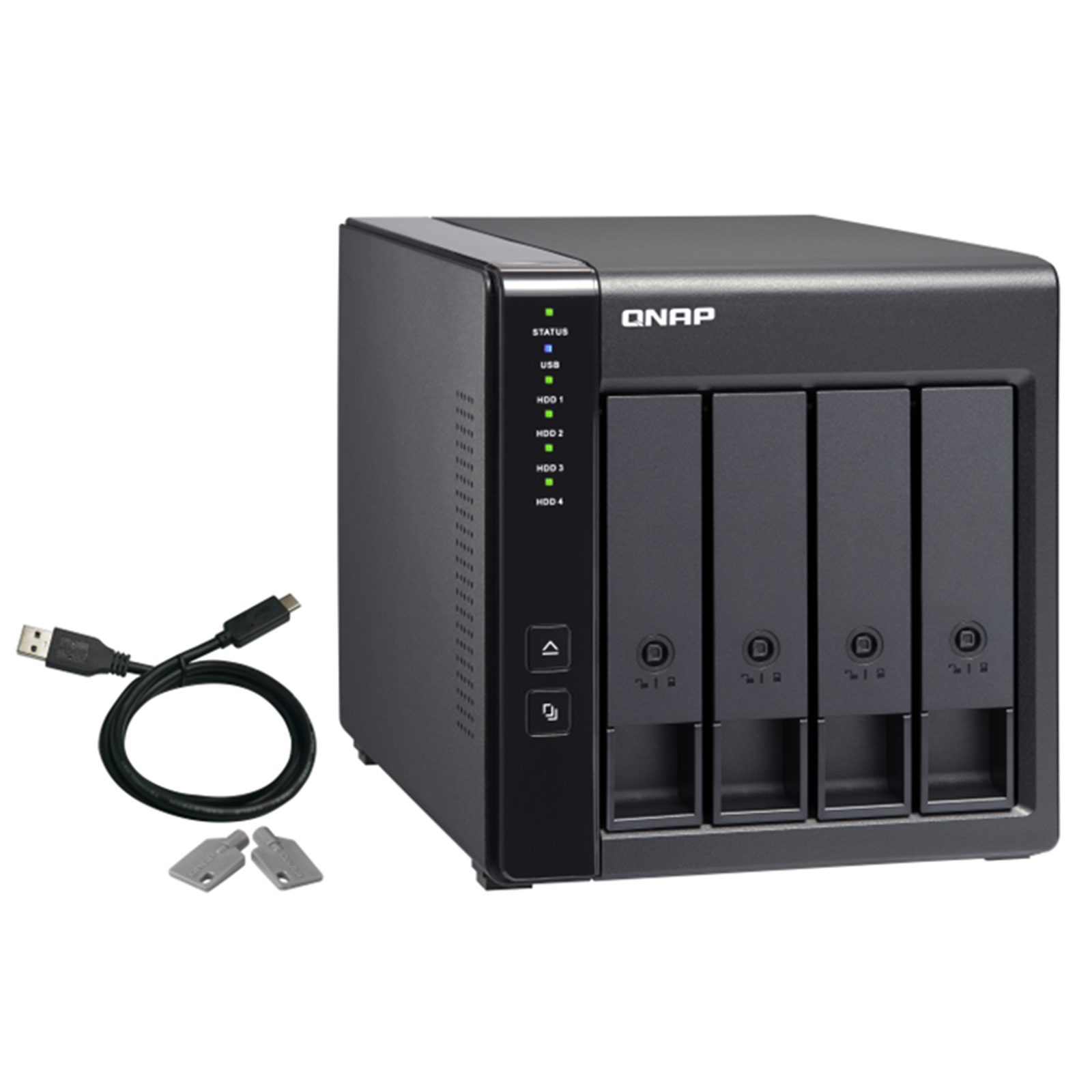

The TR-004 USB 3.0 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.0 Type-C connectivity to bring you a highly reliable and secure storage capacity expansion solution.
Drive Bay
4 x 3.5-inch SATA 3Gb/s
Drive Compatibility
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
Lockable with key lock
Key lock
Hot-swappable
Yes
USB Port
1 x USB 3.0 Type-C
NOTE: This port is only for connecting the RAID enclosure to a NAS or computer.
Buttons
Eject
Set
One Touch Copy
Switches
Power
RAID modes: Software Ctrl, Individual, JBOD, RAID 0/1/5/10
Form Factor
Tower
Dimensions (H x W x D)
6.63 x 6.31 x 8.62 inch
Weight
4.08 lbs
Power Supply Unit
65W, 100-240V AC, 50/60 Hz
Power Consumption (W)
HDD standby: 4.17 W
In operation: 18.21 W
(with 4 x 1TB HDDs)
Sound Level
18.1 db(A).
Operating Temperature & Relative Humidity
0 ~ 40°C ( 32°F ~ 104°F ), 5 ~ 95% RH non-condensing, wet bulb: 27°C (80.6°F)
Fan
System: 1 x 12 cm, 12V DC smart fan
Security Slot
Kensington security slot
